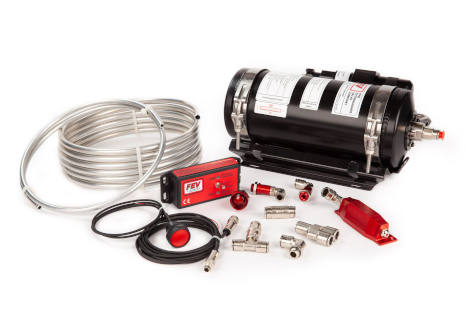

Description: Remote Charge NOVEC 1230 + ADS Gas Extinguisher, 2 Engine Nozzles, 1 Cockpit Nozzle
Model no: N-TEC2950R FIA Standard 8865
Class 1- Petrol in accordance with Art. 9 of Article 252 of the 2014 Appendix J
Note this system is for use only for cockpit volumes from 1.25 m3 to 2.3 m³
Installation rear or front- uses different push in connectors, see kit content
|
Installation Kit Contents:
- 1x Laser cut Bracket
- 2 x Stainless Steel Strap
- 1 x Hard-line Pressure Hose 8mm
- 1 x 16-hole Cockpit Bar Nozzle – Red
- 2 x Engine X Nozzles – 8mm
- 1 x External Push Button & fly lead
- 1 x Internal Push Button & Metal Shroud
- 1 x Control Box 8865 & Wiring Loom
- 1 x 38gram Remote Charge
Front Installation:
- 1 x Y Connector 10mm metal
- 1 x T Connector 8mm x ¼ BSP male metal
- 1 x Straight Connector 10 x ¼ BSP female metal
Rear Installation:
- 1 x T Connector 10-10 metal
- 1 x T Connector 8mm x ¼ BSP male metal
- 1 x Straight Connector 10 x ¼ BSP female metal
- 1 x Straight joiner 10mm
- 1 x Push-in Elbow 10mm ¼ BSP
- 10 x Pipe Clips
- 4.0 mtr of 10mm Aluminium tubing for cockpit
- 1.0 mtr of 8mm Aluminium tubing for engine
- 1 x E Decal, 1 x Small E Label
- 1 x Installation Instructions
